JC630 Micro Differential Pressure/ Air Pressure Transducer Overview:

Designed with high-quality components from a foreign company, JC630 Micro Differential Pressure / Air Pressure Transducer adopts the circuit of normalized design and assembly process as well as unique sensor stress isolation technology, to convert the differential pressure signal of the measured medium into 4~20mA or 1~5V DC standard signal through temperature compensation and high-stability amplification process. High-quality sensor, circuit of normalized design, superb encapsulation technology as well as improved assembling process ensure superior quality and best performance of this product. This series product is specially designed for industrial and civil OEM customers, for which new cost performance standard has been established.

JC630 Micro Differential Pressure/ Air Pressure Transducer Features:
* High performance cost ratio
* From 0~0.5kpa to 0~700kpa
* Continuously adjustable zero point and range
* Lightning and radio frequency immunity
* Reverse polarity protection and current-limiting protection
* Compact structure, elegant appearance, and easy Installation
* Normalized design and production guarantee stable quality and performance of the product
* The product can be designed or improved as per customers' specific requirements


JC630 Micro Differential Pressure/ Air Pressure Transducer Application:
* Purification equipment and cleaning engineering
* Dust control and environmental protection
* Underground ventilation monitoring
* Hearth pressure or hearth negative pressure
* Measurement of air pressure and flow rate in industrial process
* Medial instruments and equipment
* Fan measurement and control
* HVAC

Jc630 Micro Differential Pressure or Air Pressure Transducer


Technical Parameters:
Measuring rangeDifferential pressure / air pressure:0~500Pa…700KPa
Negative pressure:0~-500Pa…-1KPa…-5KPa…-10KPa….-50KPa…-100KPa
Permissible overpressureThree times of FS pressure
Measuring mediaNon-corrosive, dust-free dry gas
Overall accuracy (linearity +
repeatability+ hysteresis)
±0.1%FS±0.25%FS±0.5%FS
Medium temperature-20ºC~85ºC
Compensation temperature-10ºC~55ºC
Ambient temperature-10ºC~80ºC
Zero temperature driftTypical:±0.02%FS/ºCMaximum:±0.05%FS/ºC
Sensitivity temperature driftTypical:±0.02%FS/ºCMaximum:±0.05%FS/ºC
Long-term stabilityTypical:±0.1%FS/yearMaximum:±0.2%FS/ year
Range of power supply12~36VDC(generally 24VDC)
Signal output4~20mA / 1~5V DC
Load resistance≤(U-12)/0.02 Ω
Enclosure materialHard aluminum alloy surface coating or 304 stainless steel
Protection classIP65 or IP67

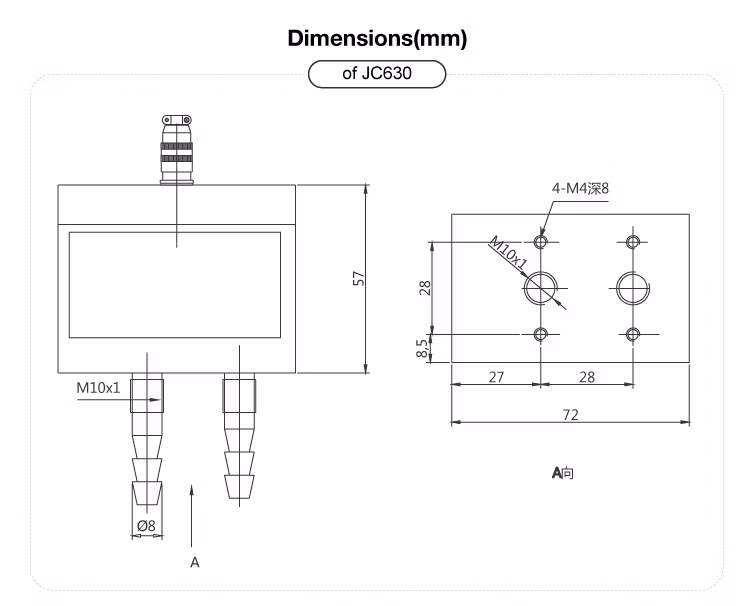

Process connectionφ8 tip, with M10×1 mounting screws (threaded connection can be made in special cases)
Ex-markExia II CT6(intrinsically safe explosion-proof type)
WeightApprox.0.35Kg
Vibration error≤±0.01%FS(Axes X, Y and Z,200Hz/g)
Thermal hysteresis±0.1%FS(typical value)
Response time≤1 ms
Insulation resistance100MΩ,500V DC
ResolutionInfinitely small (theoretical),1/100000(normal)

Ordering Information:
JC630Micro Differential Pressure / Air Pressure Transducer
 RangeMeasuring range( 0~ X  KPa)
 CodeOverall accuracy (linearity + repeatability+ hysteresis)
1±0.5%FS
2±0.25%FS
3±0.1%FS
 Code Signal output (standard power supply)
A14~20mA
V11~5V DC
V20~5V DC
V30.5~4.5V DC
 CodeAdditional functions
F1M20x1.5
F2 G1/4 external thread
F3φ8 tip, with M10×1 mounting thread
F0Special
W1Cable type (IP67,2m)
W2Socket type (IP65,DIN43650)
W3 Aerial socket type(IP65)
E       Intrinsically safe explosion-proof type Ex iaПCT5
JC630 (0~500Pa)     -1    -A1  -F2  -W1          Micro Differential Pressure / Air Pressure Transducer

Tips for Type Selection
* If the medium to be measured contains dusty or wet gas, be sure to select supporting dust-proof dry filters for connecting lines, and remove wet dust or make a replacement on time.
* As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type Ex iaIICT5 denotes that power source must be supplied via safety barrier.
* For other special requirements, please discuss with us and clearly indicate them in the order.
