Low cost ceramic capacitive pressure sensor smart pressure sensor 0-2000kpa

Product DescriptionLow cost ceramic capacitive pressure sensor smart pressure transducer 0-2000kPaApplicable mediaLiquid, GasPressure range0-20bar; 0-2000kPaCellCeramic capacitive pressure sensorPressure measurmentGauge Pressure, Sealing pressureOutput0.5-4.5VPower supp

Featured Products

Product Description

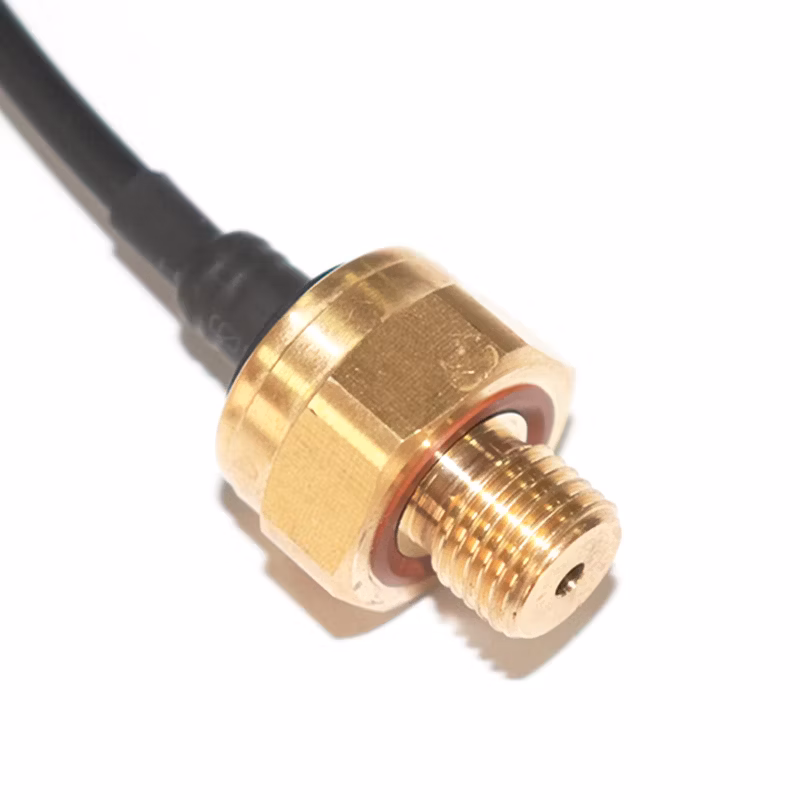

Low cost ceramic capacitive pressure sensor smart pressure transducer 0-2000kPa

Applicable mediaLiquid, Gas
Pressure range0-20bar; 0-2000kPa
CellCeramic capacitive pressure sensor
Pressure measurmentGauge Pressure, Sealing pressure
Output0.5-4.5V
Power supply4.75-5.25VDC
Accuracy(linearity,Hysteresis and Repeatability)1%F.S.
Compensation temperature-20~70ºC
Ambient temperature-40~110ºC
Working temperature-40~110ºC
Temperature drift(zero)±0.15% F.S. (-20~70ºC)
Temperature drift(full range)±0.15% F.S. (-20~70ºC)
Electrical connectionCable outlet
Mechanical connectionG1/4"
Housing materialBrass




Low Cost Ceramic Capacitive Pressure Sensor Smart Pressure Transducer 0-2000kpa


Low Cost Ceramic Capacitive Pressure Sensor Smart Pressure Transducer 0-2000kpa
Low Cost Ceramic Capacitive Pressure Sensor Smart Pressure Transducer 0-2000kpa
Low Cost Ceramic Capacitive Pressure Sensor Smart Pressure Transducer 0-2000kpa
Low Cost Ceramic Capacitive Pressure Sensor Smart Pressure Transducer 0-2000kpa
Low Cost Ceramic Capacitive Pressure Sensor Smart Pressure Transducer 0-2000kpa
Low Cost Ceramic Capacitive Pressure Sensor Smart Pressure Transducer 0-2000kpa

Company Information

Low Cost Ceramic Capacitive Pressure Sensor Smart Pressure Transducer 0-2000kpa



Factory

Low Cost Ceramic Capacitive Pressure Sensor Smart Pressure Transducer 0-2000kpa



Exhibition

Low Cost Ceramic Capacitive Pressure Sensor Smart Pressure Transducer 0-2000kpa



Our Certificate

Low Cost Ceramic Capacitive Pressure Sensor Smart Pressure Transducer 0-2000kpa



FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.



Q: What's your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
