Pressure Sensor Transmitter 0-500psi 4-20mA 1 5V Pressure Sensor

Brief description: HDP500 series pressure transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control

Featured Products

Brief description:



HDP500 series pressure transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output mode can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work in co    rrosive environment. The product is easy to install and has high anti-vibration and anti-impact performance. It is widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC and other fields.



Product advantages:

· 304 or 316L stainless steel isolation diaphragm structure.

· Laser label printing.

· High Precision ,Isolation circuit board.

· Microamplifier, output of voltage, current and RS485 signals.

· Strong anti-interference and long-term stability.

· Diversification of shape and structure.

· Guarantee period: 24 months.



Mainly technical parameters:

Model

HDP500

Power supply

24VDC

Output signal

4~20mA,1~5V,0~10V,RS485

Measuring range

-0.1...0...100Mpa

Compensation temperature

-10~70ºC

Medium temperature

-40~80ºC

Environment temperature

-40~85ºC

Measuring media

Gaseous,Liquid,Water

Pressure type

Gauge pressure,Absolute pressure

Accuracy

0.1%F.S,0.25%F.S,0.5%F.S(standard)

Zero tempe drift

±0.03%F.S/ºC

Sensitivity temperature drift

±0.03%F.S/ºC

Overload

200%F.S

Long-term stability

≤0.2%F.S/year

Inherent frequency

5kHz~650kHz

Protection grade

IP65

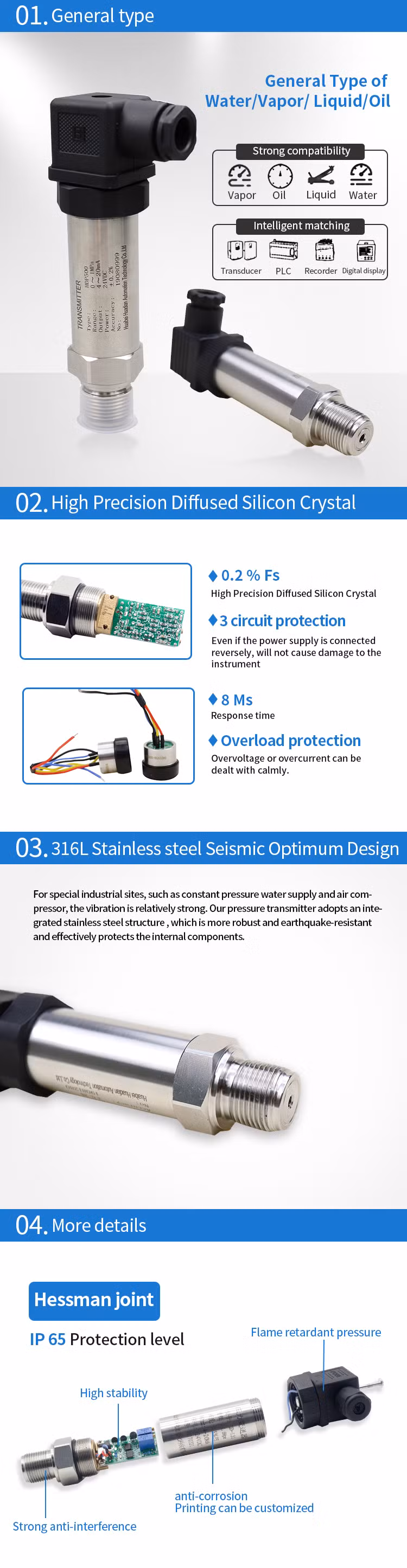

Pressure Sensor Transmitter 0-500psi 4-20mA 1 5V Pressure Sensor

Pressure Sensor Transmitter 0-500psi 4-20mA 1 5V Pressure Sensor


Pressure Sensor Transmitter 0-500psi 4-20mA 1 5V Pressure Sensor
Pressure Sensor Transmitter 0-500psi 4-20mA 1 5V Pressure Sensor
